The rapid acceptance and accelerated growth of the Internet is quickly transforming the mix of traffic crossing public networks. To compete effectively in a data-driven economy, service providers need an...
The rapid acceptance and accelerated growth of the Internet is quickly transforming the mix of traffic crossing public networks. To compete effectively in a data-driven economy, service providers need an optical transport infrastructure optimized for pack

The rapid acceptance and accelerated growth of the Internet is quickly transforming the mix of traffic crossing public networks. To compete effectively in a data-driven economy, service providers need an optical transport infrastructure optimized for packets combined with the scalability and the flexibility to support unimagined IP-based applications.

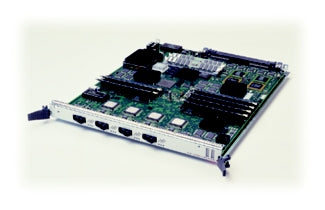

Cisco Systems, Inc. has developed the Quad OC-12/STM-4 packet-over-SONET/SDH line card. This new high density interface card offers industry leading switching performance and class-of-service (CoS) features for delivering advanced end-to-end networking features. The high performance switching engine integrates WRED and our innovative ASIC-based queue scheduling algorithm Modified Deficit Round Robin (MDRR) in the core of the network. These allow service providers to offer differentiated services with deterministic traffic behavior in the core of the network. This unique combination of features provides a versatile solution allowing a service provider to deploy a single interface in either a core application or a high-capacity aggregation application. This level of flexibility helps improve protection of investment, which is ideal given the dynamic nature of an Internet-driven economy.





Layer 3 Feature Summary




  • 4 Mpps forwarding rate for IP, Frame Relay Switching1, and Multiprotocol Label Switching (MPLS)

  • IP and MPLS load balancing (6 paths)

  • IP and MPLS CoS—32 CoS queues per destination line card (2056 CoS queues total)

  • Random Early Detection (RED) and Weighted Random Early Detection (WRED)

  • Modified Deficit Round Robin (MDRR)

  • Packet/byte count, SONET/SDH errors, queue size, and WRED statistics without performance degradation.

  • MPLS traffic engineering using Routing with Resource Reservation (RRR)

  • MPLS Virtual Private Network (VPN)1

  • Multicast forwarding

  • Per Interface Rate Control (PIRC)2

  • Extended access control list (EACLs)2

  • A Cisco Express Forwarding (CEF) table that can accommodate up to one million forwarding entries

  • Maximum transfer unit (MTU) 9188 bytes

  • 64 MB of route table memory, expandable to 256 MB

  • 128 MB of packet forwarding table memory (PSA)

  • 256 MB of packet buffer memory, expandable to 512 MB.
